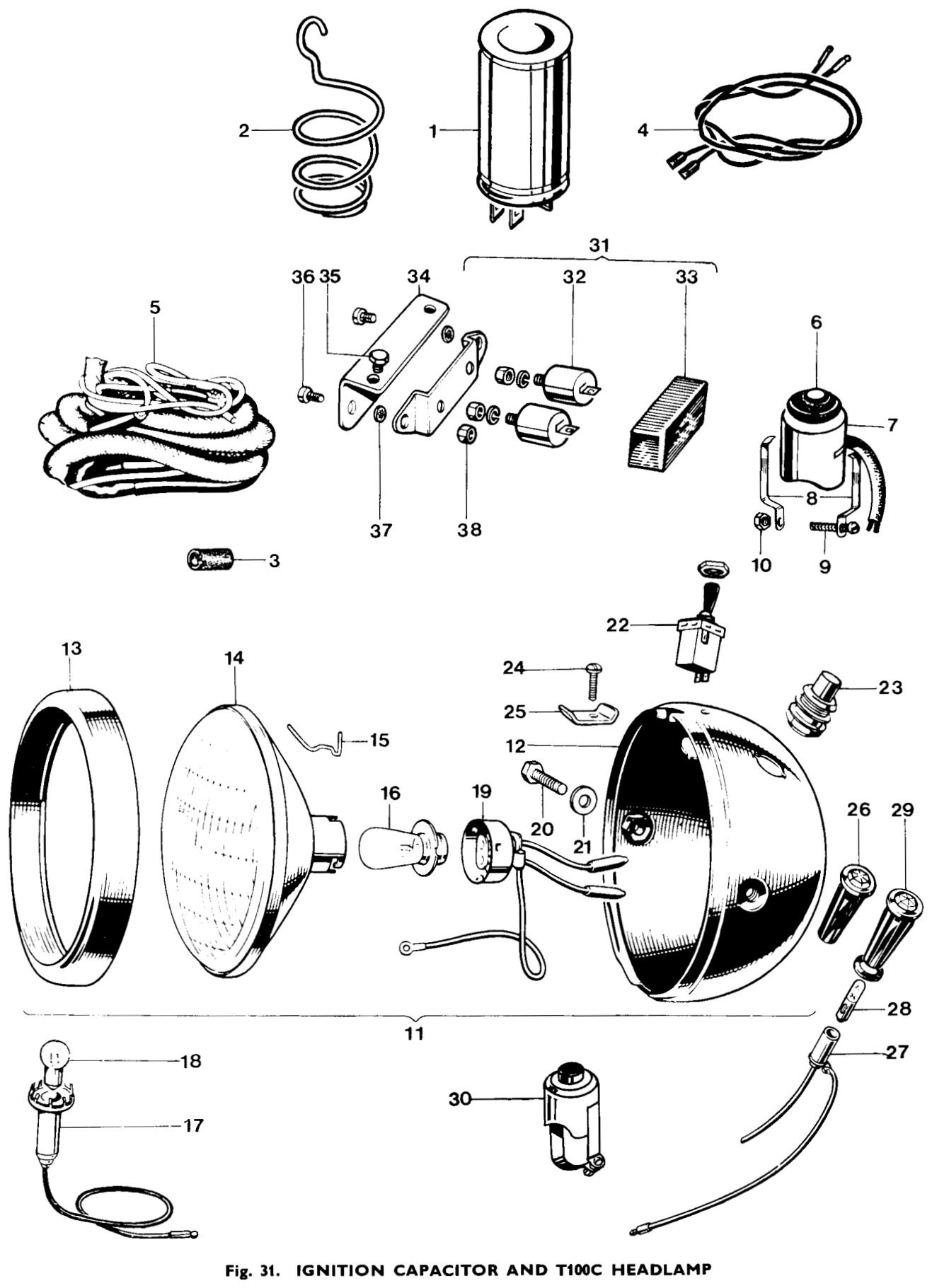

| Diagram | Fig. 31 — IGNITION CAPACITOR AND T100C HEADLAMP · ref 31 |
| Subsystem | electrical |
| Listed in parts books | 1968, 1970–1971, 1974 |
Condenser pack 2CP (99-0588)
Lucas condenser pack, PN 47638 (99-0588), used in the ignition/electrical system on these machines.
This is the Lucas condenser pack, part number 47638, also cataloged under 99-0588. It's an electrical part that lives with the ignition system, showing up in the parts books alongside the ignition coils, capacitor, flasher unit, zener diode, and horn on these machines.
Read more
A condenser pack like this one suppresses electrical arcing at the contact breaker points and helps the ignition system fire cleanly. It's a small but important piece of the charging and ignition puzzle, wired in with the coil and other electrical components rather than standing alone.
Our catalog record ties this part to entries spanning 1968 through 1974, appearing in several different figure listings for coil and capacitor setups, including ones noted for the T100C. If you're not sure this is the right condenser pack for what you're working on, give us a call and we'll help confirm before you order.
