Details

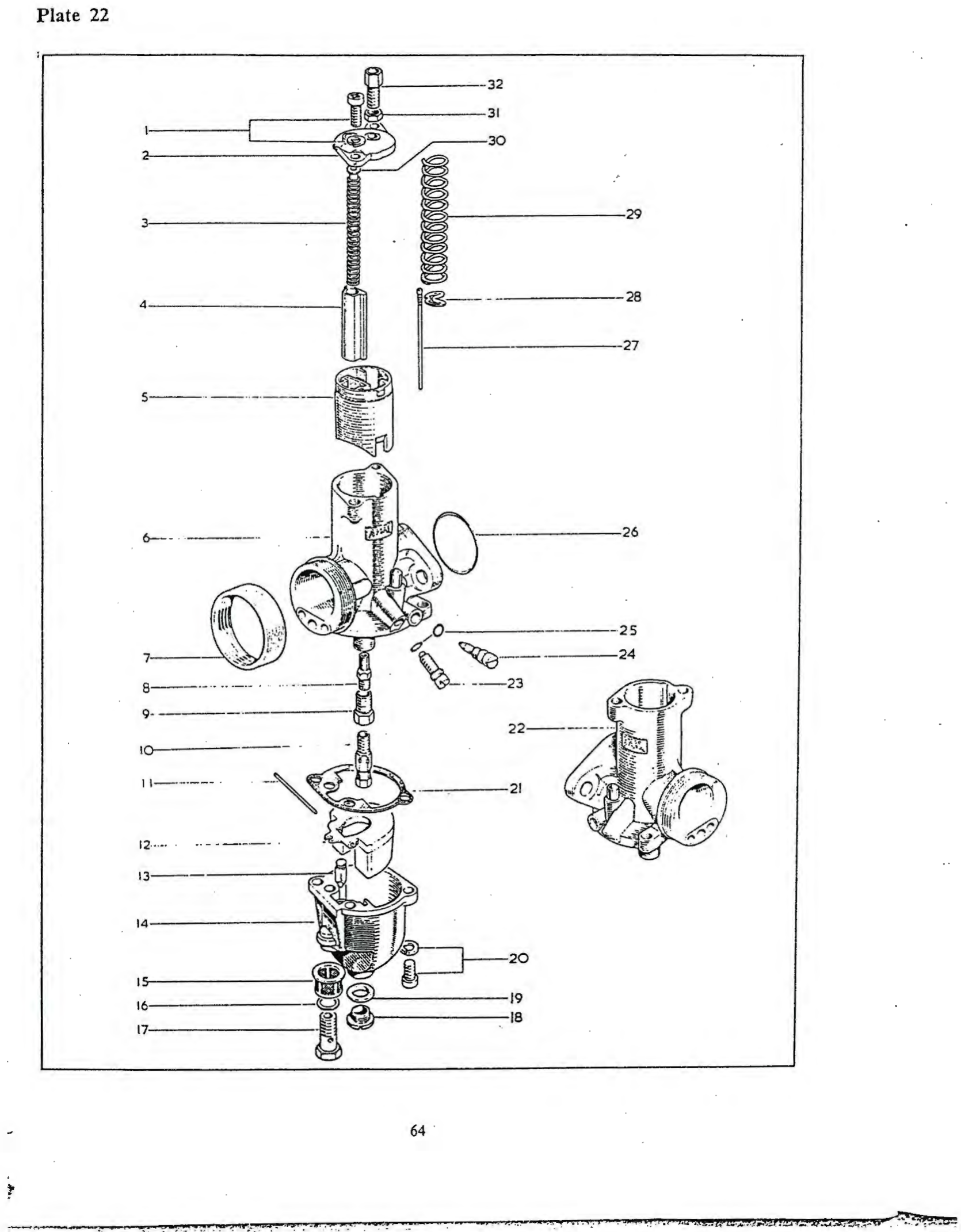

| Diagram | Fig. 29 — CARBURETTERS (Plate 22) |
| Subsystem | fuel |
| Listed in parts books | 1972 |
Carburetter complete — right
Complete right-side Amal carburetter, PN 19-2436 (R930/70).
PN · 19-2436 / R930/70
This is a complete right-side carburetter, part number 19-2436 (also carried under the number R930/70 in older references). It's an Amal unit, sold as a full assembly rather than a single component, so what you get is the whole carb ready to go on rather than a body or slide alone.
Not listed anywhere
We've never carried this one. Tell us what you're after and we'll go looking — you'll get a price and photos before you commit to anything.
Sign in to request it
We need somewhere to send the price and the photographs.
Pin your bike to check this part fits.
Sorry if we got something wrong here. If you think this information isn't correct, .
Related parts
"O"-ring, carburetter flange
PN 19-3090 622/101 · Goes with this
Gasket — float chamber
PN 19-3106 / 622/073 · Usually replaced with this
Mixing Chamber 750 R.H. 30 mm
PN R930/005 · Goes with this
Float chamber
PN 19-3143 / 622/050 · Goes with this
Float needle
PN 19-3105 / 622/068 · Goes with this
Screw and washer, float chamber to body
PN 19-3093 / 622/086 · Goes with this
