| Also known as | F9629 |

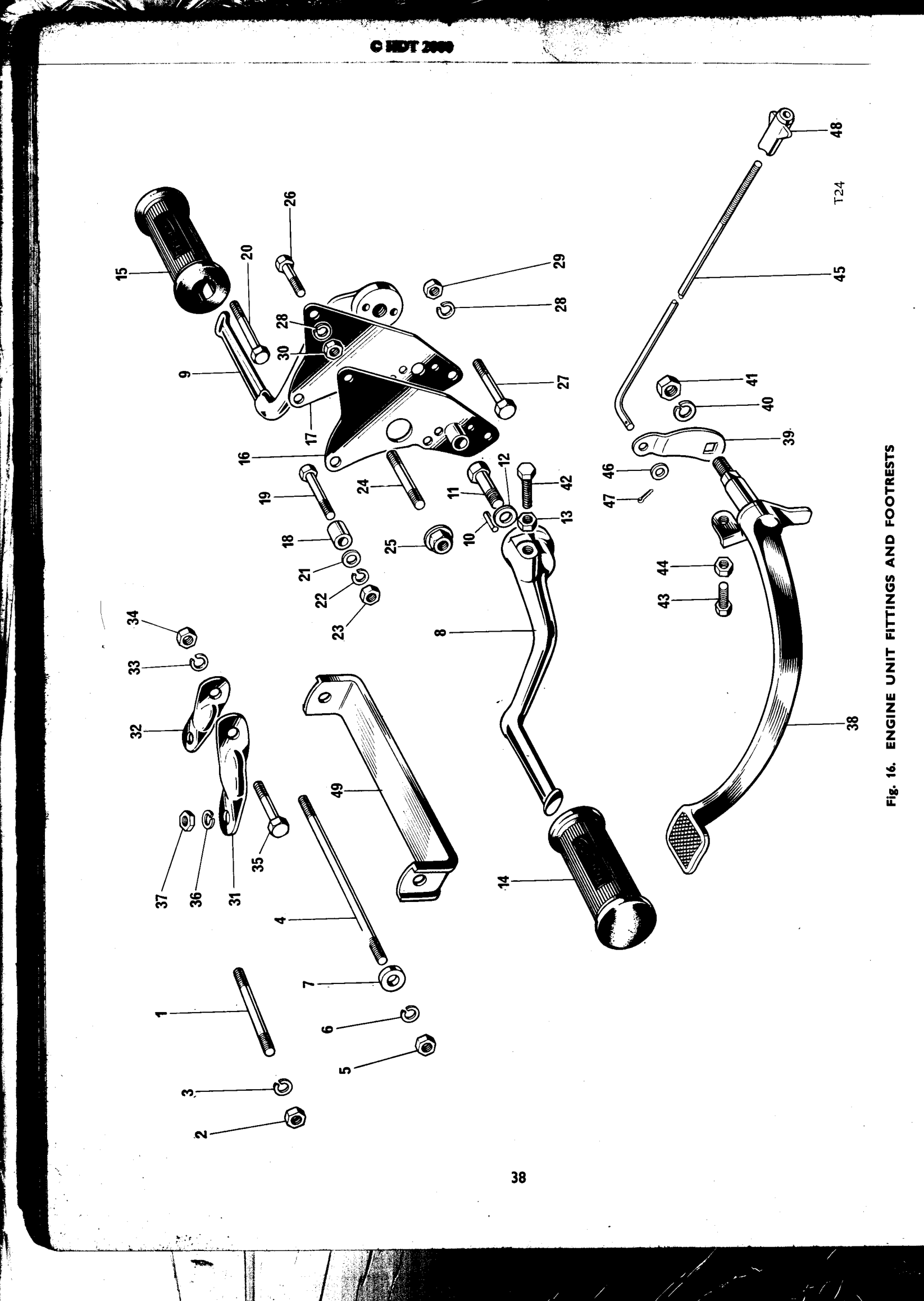

| Diagram | Fig. 16 — ENGINE UNIT FITTINGS AND FOOTRESTS · ref 17 |
| Subsystem | frame |
| Listed in parts books | 1969 |
Rear engine plate D.S.
Drive-side rear engine mounting plate, part number 82-9629 (also F9629), from the Engine Unit Fittings and Footrests section.
This is a rear engine plate, drive side, part number 82-9629, also known under the older F9629 designation. It shows up in the parts book under Engine Unit Fittings and Footrests, which places it at the rear of the engine where the motor bolts to the frame and where the footrest hardware typically picks up as well.
Read more
Engine plates like this one carry the load between the engine cases and the frame rails, and on the drive side they often share duty with footrest mounts and other fittings bolted through the same plate. The catalog only ties this one to a single model year appearance, so beyond what's shown here we don't have more detail on which specific machine it left the factory on.
If you're matching this up against a plate already on the bike or working from a parts book listing, the F9629 number is the same physical part as 82-9629 under the earlier numbering style. Confirm fitment before you order, since our record doesn't spell out which particular engine and frame combination this drive-side plate was cataloged with beyond the one entry we have.
