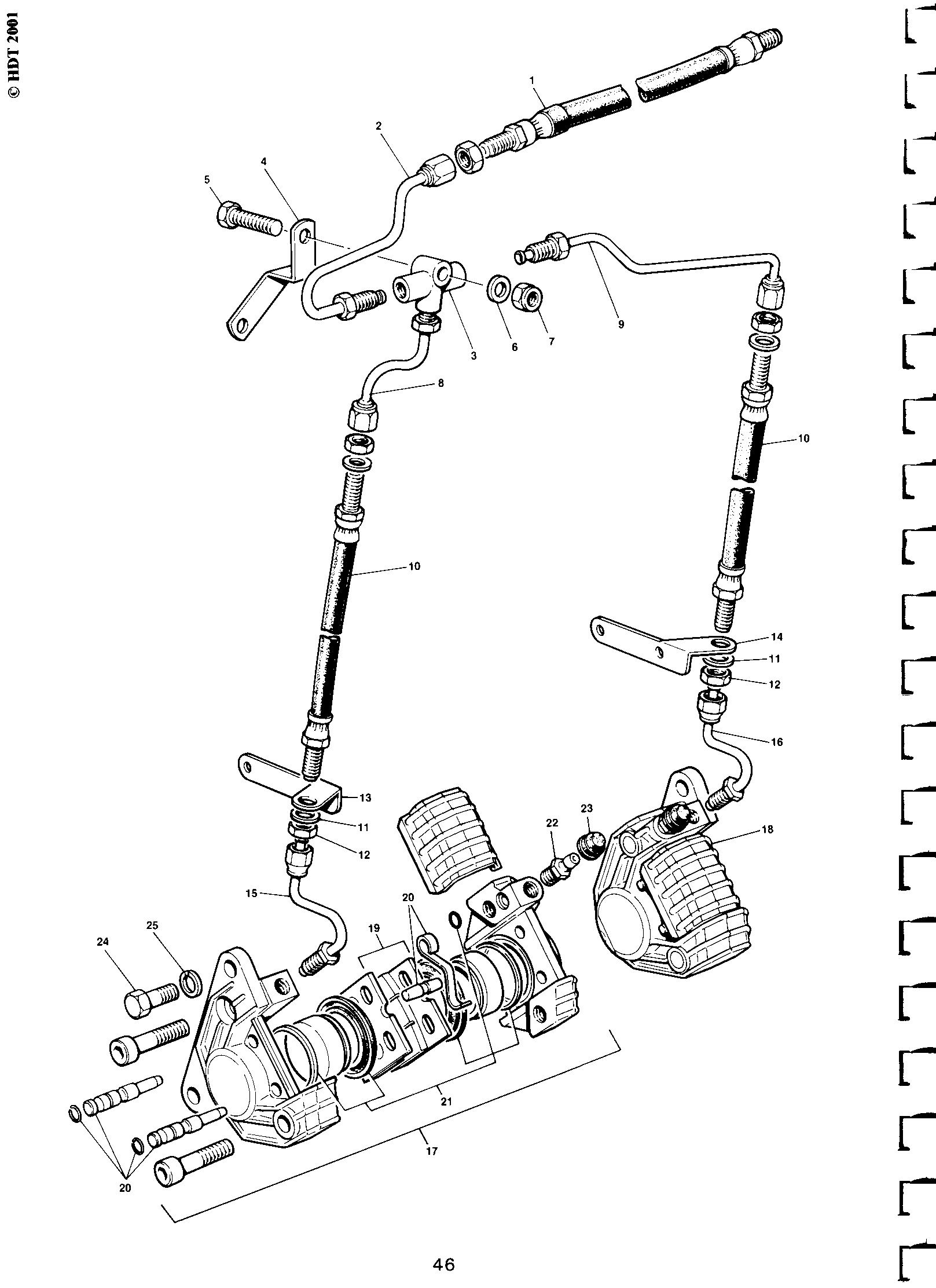

| Diagram | Fig. 19 — FRONT BRAKE · ref 2 |
| Subsystem | brakes |
| Listed in parts books | 1983, 1985 |
Brake pipe - top yoke to 3 way junction block
A hydraulic brake pipe running from the top yoke to the three-way junction block on twin-disc front brake setups.
This is a brake pipe that runs from the top yoke down to the three-way junction block on the front brake system. It's a hydraulic line, part of the plumbing that carries fluid from the master cylinder area on twin-disc front brake setups down to the point where the line splits to feed both calipers.
Read more
The catalog places this in the FRONT BRAKE and TWIN BRAKE CONDITION figures, which tells you it's specific to bikes running dual front discs rather than a single-disc or drum setup. Appearances in the catalog run from the early to mid 1980s.
If you're chasing a spongy lever or a leak up near the top yoke, this is one of the lines worth checking. Confirm your bike is set up with the twin-disc arrangement and the three-way junction block before ordering, since single-disc front ends route the plumbing differently.
