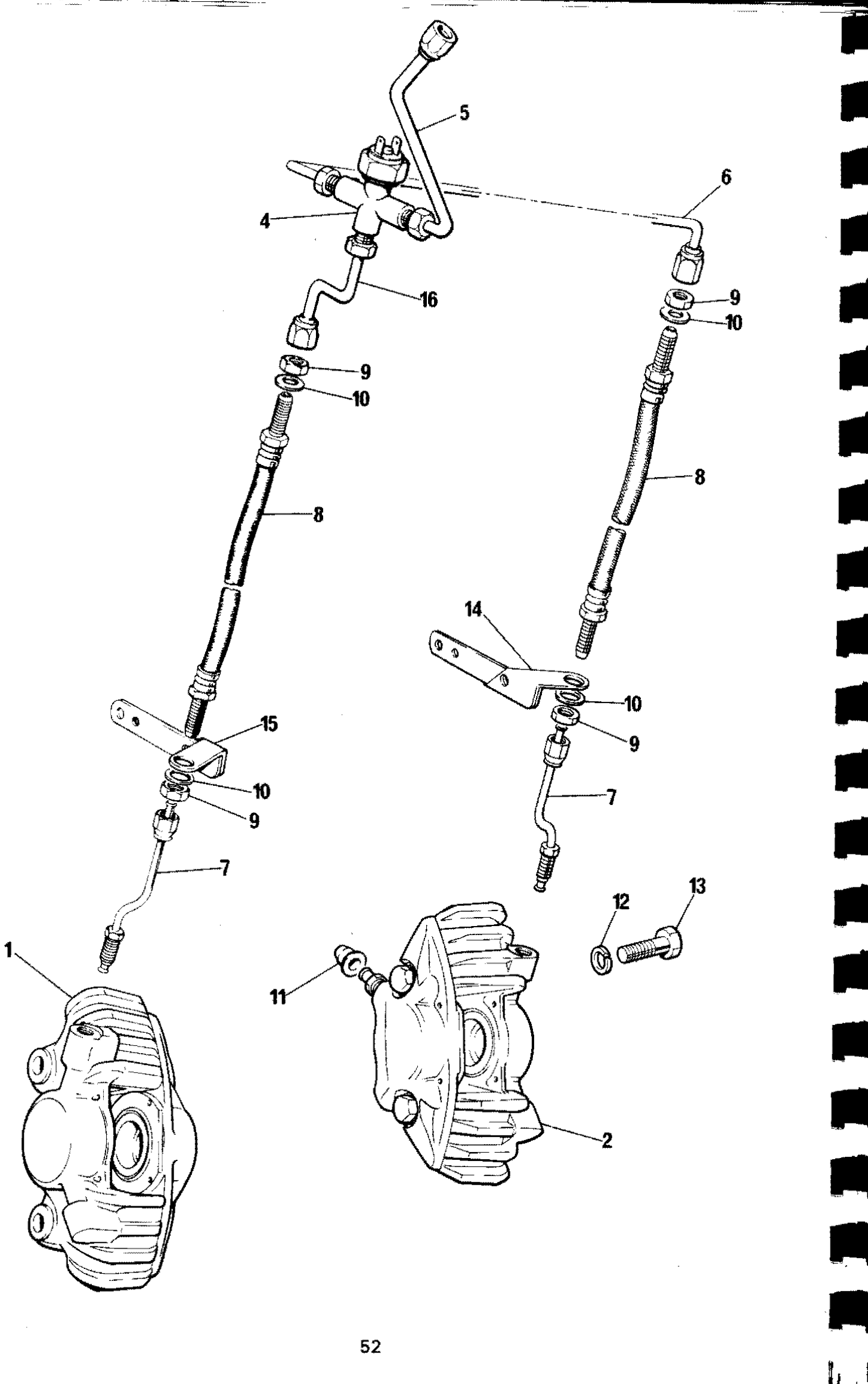

| Diagram | Fig. 22 — TWIN BRAKE CONDITION · ref 4 |
| Listed in parts books | 1983 |
Junction Block Assy 4Way
A 4-way hydraulic junction block used in dual front disc brake systems to join the brake lines together.
This is the 4-way junction block, PN 60-7482, used in the front brake hydraulic circuit on later Triumphs fitted with dual front discs. It ties the lines together at one point so fluid from the master cylinder can feed out to both calipers along with a switch or bleed connection, depending on how the circuit is arranged on your bike.
Read more
The catalog only shows this one appearing once, in the figure covering twin-disc brake setups, so we don't have a lot of extra detail to pass along beyond that it's a hydraulic fitting for a dual-disc front end. If you're chasing down a leak or a soft lever and tracing lines back to a junction point, this is likely the part you're looking at.
Give us a call if you want to confirm this is the right block for your particular brake layout before you order — hydraulic fittings vary enough between years and setups that it's worth double-checking.
