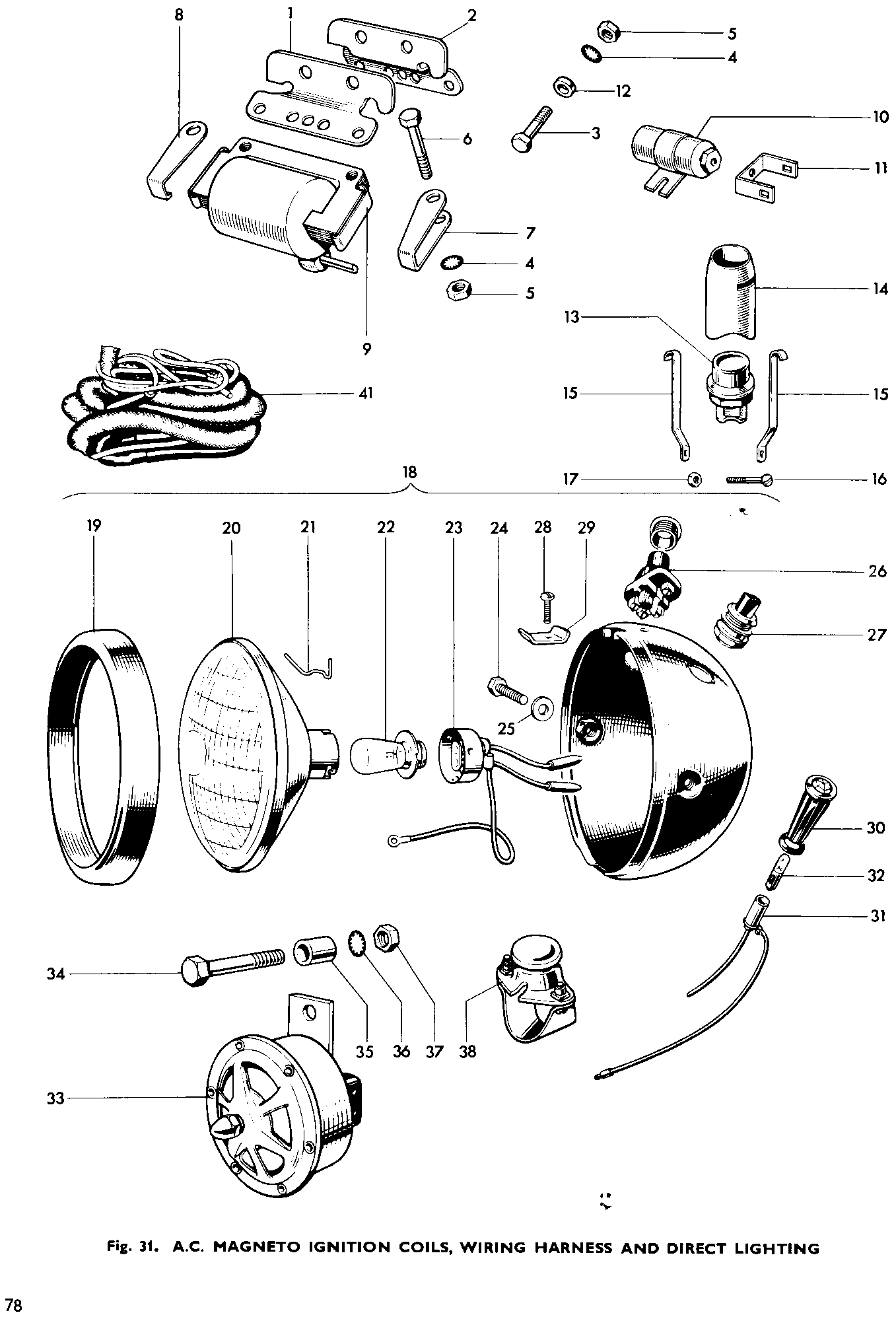

| Diagram | Fig. 31 — A.C. MAGNETO IGNITION COILS AND DIRECT LIGHTING · ref 18 |
| Subsystem | electrical |
| Listed in parts books | 1967 |
Headlamp assembly
A Lucas headlamp assembly tied to a direct-lighting/magneto ignition setup, per the catalog figure it appears in.
This is a headlamp assembly listed under Lucas electrical parts. Our catalog record puts it in the same figure as the magneto ignition coils and direct lighting setup, which tells you it belongs to a system running off magneto-generated current rather than a battery-fed circuit.
Read more
We don't have much more detail on this one beyond that figure placement. The catalog entry only shows one year, so we can't tell you which specific model or model run it fits from what's in front of us.
If you're trying to match this against what's on your bike, give us a call and we'll work through it with you before you order.
