Details

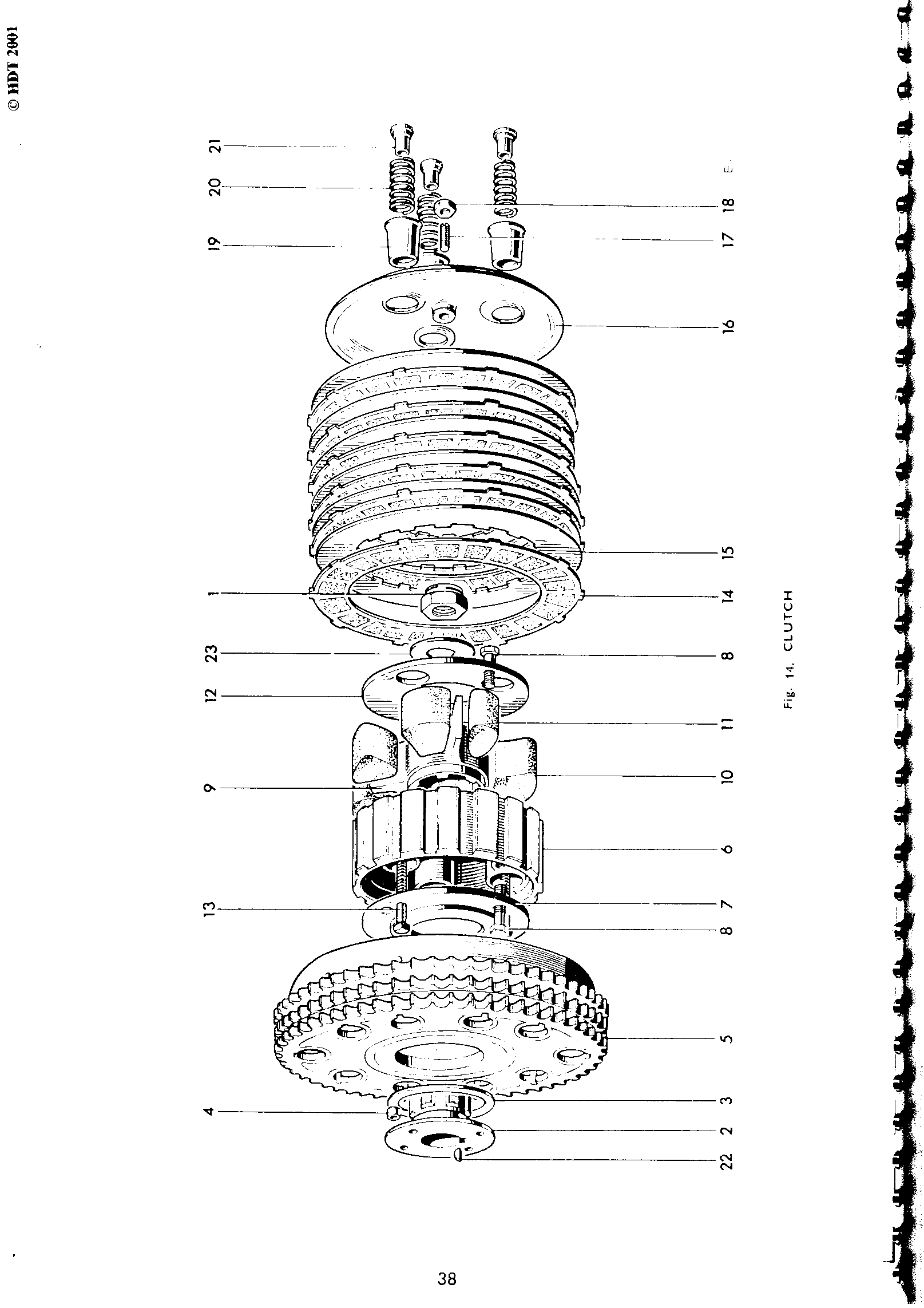

| Diagram | Fig. 14 — CLUTCH · ref 16 |
| Subsystem | primary |
| Listed in parts books | 1974, 1976–1980, 1983, 1985 |
PRESSURE PLATE 3 SPRING - TWINS
Outer pressure plate for the 3-spring clutch fitted to Triumph twins.
PN · 57-4590
Available in 2 materials:
SteelAlloy
This is the pressure plate for the later 3-spring clutch used on Triumph twins, part number 57-4590. It's the outer plate the springs bear against, sitting at the front of the clutch assembly and pressing the plates together so power gets through the primary drive without slipping.
$38.95
Pin your bike to check this part fits.
Sorry if we got something wrong here. If you think this information isn't correct, .
