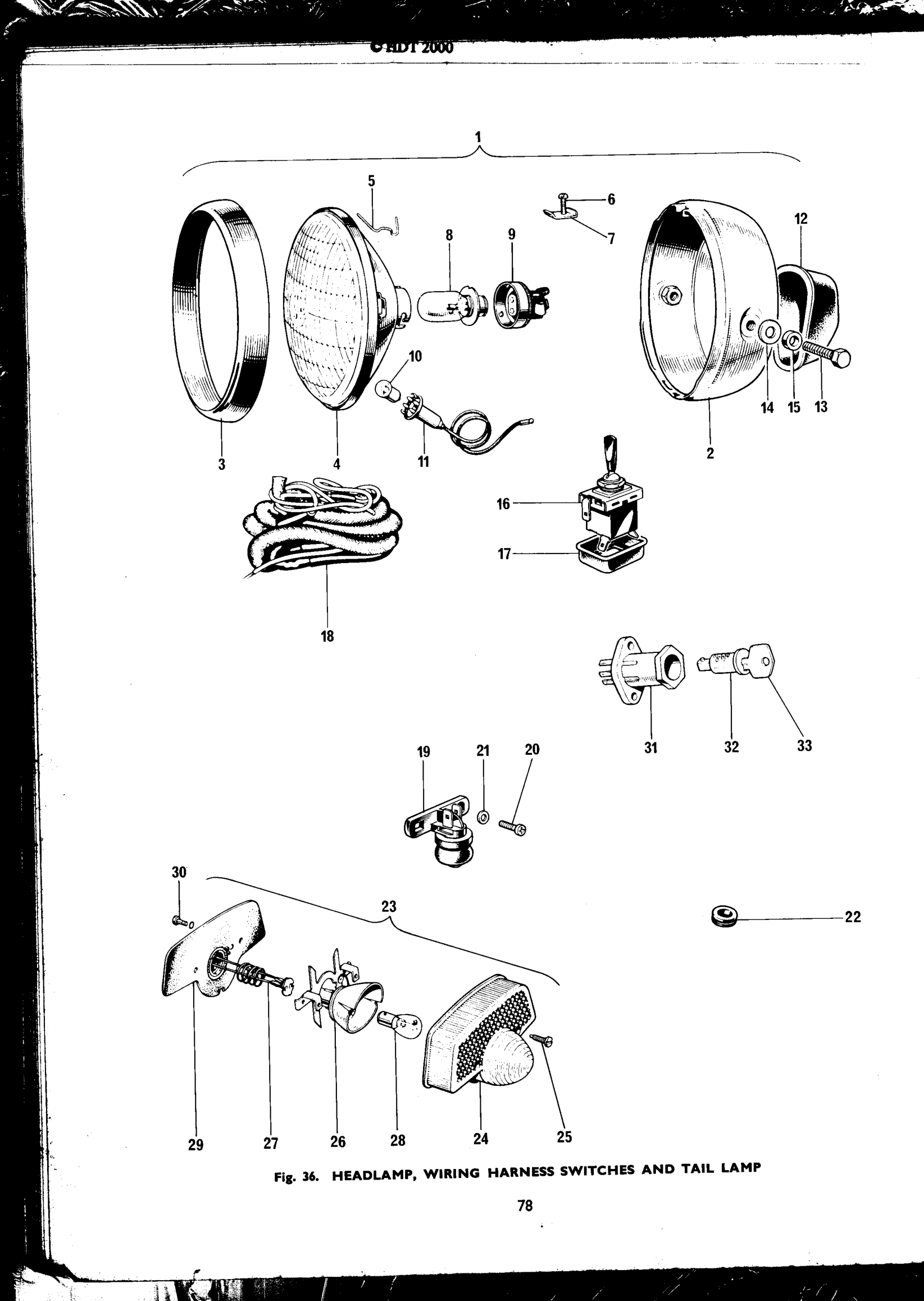

| Diagram | Fig. 36 — HEADLAMP, WIRING HARNESS, SWITCHES AND TAIL LAMP · ref 12 |
| Subsystem | electrical |
| Listed in parts books | 1969–1970 |
Rubber cover 54524048
A rubber cover fitted behind the headlamp shell to seal and protect the wiring connections, catalog number 99-1026.
This is a rubber cover that seats behind the headlamp shell, part of the electrical assemblies covered in the headlamp, wiring harness, and switches/tail lamp sections of the parts books. It shows up in catalog listings from 1969 to 1970 under number 99-1026.
Read more
The rubber cover's job is to seal and protect the back of the headlamp unit where the wiring connections live, keeping moisture and road grime off the electrical bits tucked in there. It's a small, unglamorous part, but a torn or missing one leaves the connections exposed to weather.
Our catalog record for this one is brief, so if you want to confirm it matches what's on your bike, give us a call and we'll walk through the fitment with you before you order.
