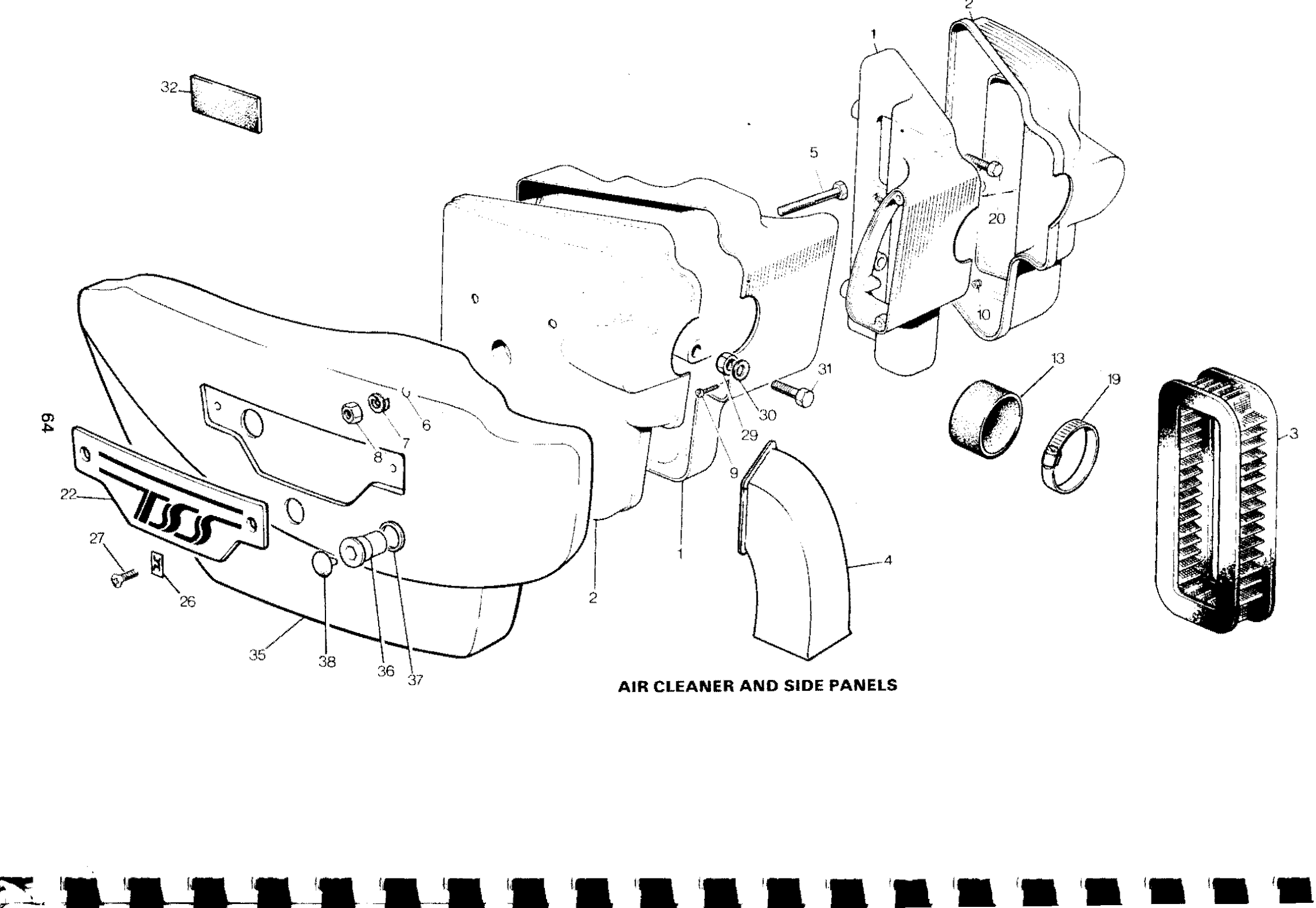

| Diagram | Fig. 28 — AIR CLEANER AND SIDE PANELS · ref 1 |
| Subsystem | fuel |
| Listed in parts books | 1983 |
Body - right
Right-hand air cleaner body panel from the air cleaner and side panel assembly, PN 83-8269.
This is the right-hand body piece from the air cleaner and side panel assembly, listed in the catalog simply as "Body - right." It's part of the air intake housing setup rather than a bodywork panel in the fender/tank sense - the figure title groups it with the air cleaner and side panels, so it lives in that intake area on the right side of the machine.
Read more
Our catalog record on this one is thin - it shows up in a single listing tied to the 1983 model year. We don't have further detail on material, dimensions, or exact mounting points for this piece.
If you're trying to match this to your bike, give us a call and we'll go over the figure with you to confirm it's the right part before you order.
