Details

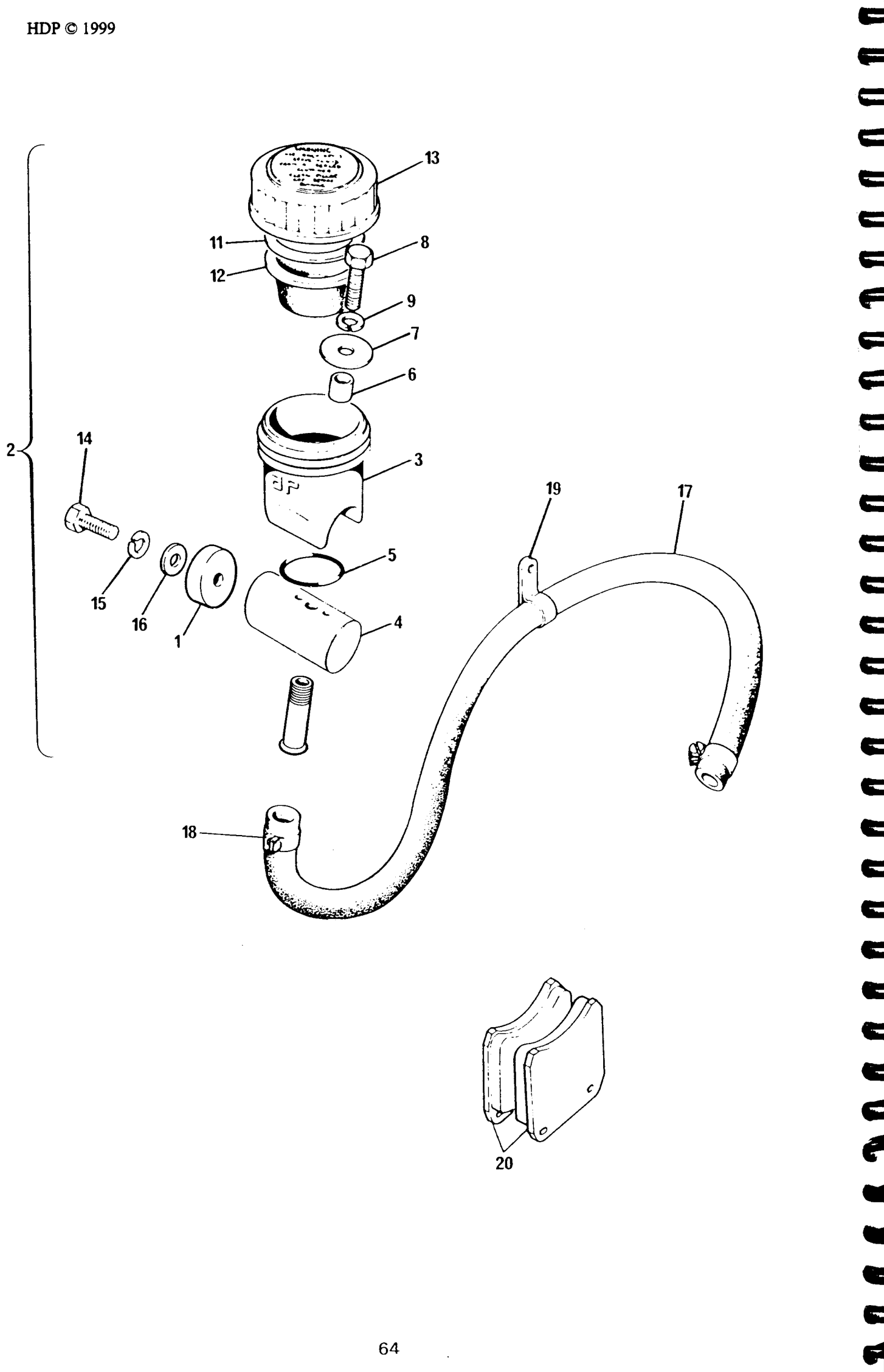

| Diagram | Fig. 27 — REAR BRAKE (continued) · ref 4 |
| Subsystem | brakes |
| Listed in parts books | 1980, 1983 |
Mounting, reservoir c/w pipe
Mounting body and pipe that holds the rear brake reservoir and feeds fluid to the rear master cylinder.
PN · 83-7501
83-7501 is the mounting body and pipe for the rear brake fluid reservoir on the rear master cylinder setup. It's the bracket assembly that holds the reservoir up off the frame and feeds fluid down through its integral pipe to the master cylinder itself.
BackorderAdd it to your cart — we'll source it and confirm the price before you pay.
Pin your bike to check this part fits.
Sorry if we got something wrong here. If you think this information isn't correct, .
Related parts
Distance tube - reservoir mntg
PN 83-7533 · Goes with this
Reservoir Body
PN 60-7047 · Goes with this
Reservoir assy
PN 83-7521 · Goes with this
HOSE BRAKE RES 12IN
PN 60-7248 · Goes with this
Hose, reservoir to master cylinder
PN 60-8248 · Goes with this
'O' ring
PN 60-7048 · Usually replaced with this
