Details
| Also known as | E8741 |

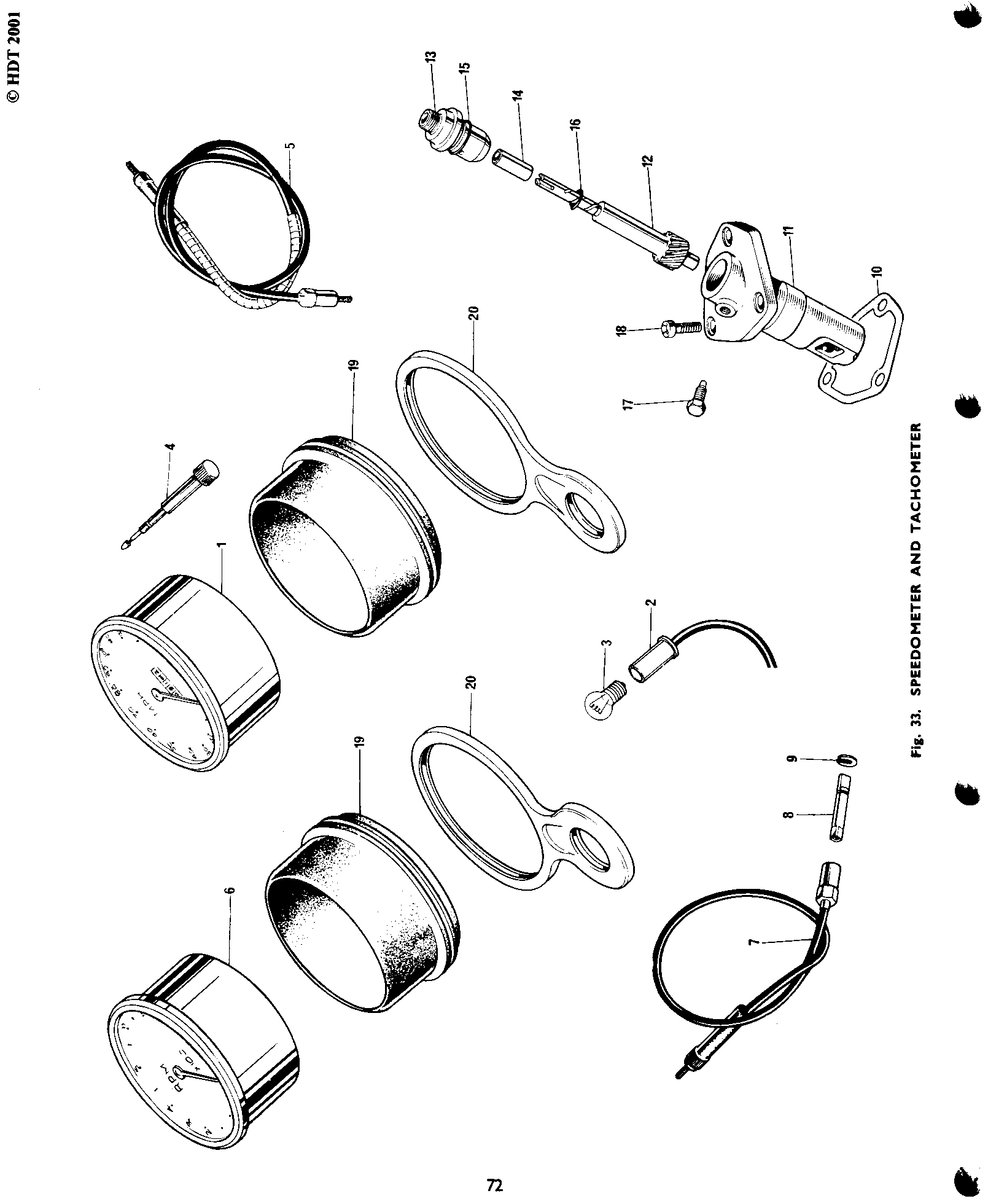

| Diagram | Fig. 33 — SPEEDOMETER AND TACHOMETER · ref 12 |
| Subsystem | electrical |
| Listed in parts books | 1969–1974 |
TACHOMETER DRIVE GEAR T15
Tachometer drive gear, part number 70-8741, for the T150/A75R gearbox drive train.
PN · 70-8741
This is a tachometer drive gear, part number 70-8741, listed in the parts books as T15 with a catalog note tying it to the T150/A75R family. It's a small geared component that lives in the drive train feeding the tachometer, turning engine speed into the mechanical signal your tach needle reads off of.
$55.49
Pin your bike to check this part fits.
Sorry if we got something wrong here. If you think this information isn't correct, .
Related parts
TACHOMETER DRIVE HOUSING
PN 70-8740 · Goes with this
TACH DRIVE HOUSING GASKET
PN 71-1439 · Usually replaced with this
O RING 9/16 - SHIFT SHAFT - Replaces 60-3530
PN 70-3309 · Usually replaced with this
HOUSING
PN 70-8742 · Goes with this
Tachometer cable (28 in. long)
PN 60-0578 · Goes with this
TACHO CABLE T150
PN 60-1903 · Goes with this
