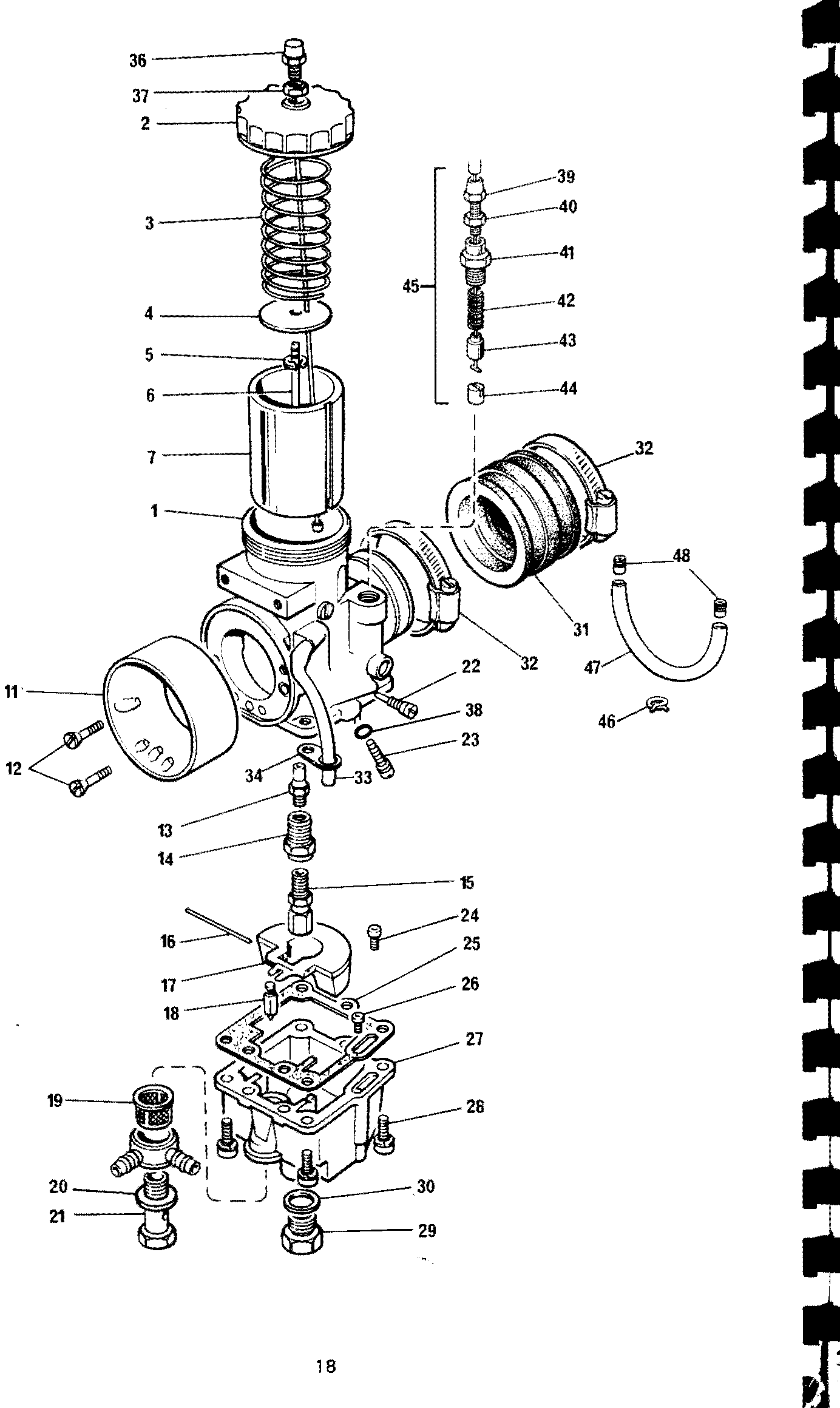

| Diagram | Fig. 5 — CARBURETOR AMAL MKII CONCENTRIC · ref 31 |
| Subsystem | fuel |
| Listed in parts books | 1983 |
CARB BOOT TO HEAD TSS
Rubber carb-to-head boot (TSS) that connects the carburetor to the cylinder head intake.
This is a carb boot listed in the books as "Carb Boot to Head TSS" — the rubber connector that joins the carburetor to the cylinder head intake. Being a boot rather than a rigid manifold, it has to seal air and fuel mixture on both ends while flexing enough to take up small misalignments between the carb and the head.
Read more
The catalog cross-reference for this part also shows up as an angled rubber adaptor, which fits with what a carb-to-head boot on a TSS-spec engine would need to do routing-wise. We don't have more detail on this one beyond that, so if you're matching this against what's currently on the bike, it's worth double-checking before you order.
If you're not sure this is the exact boot your intake setup needs, give us a call and we'll sort it out with you before it ships.
