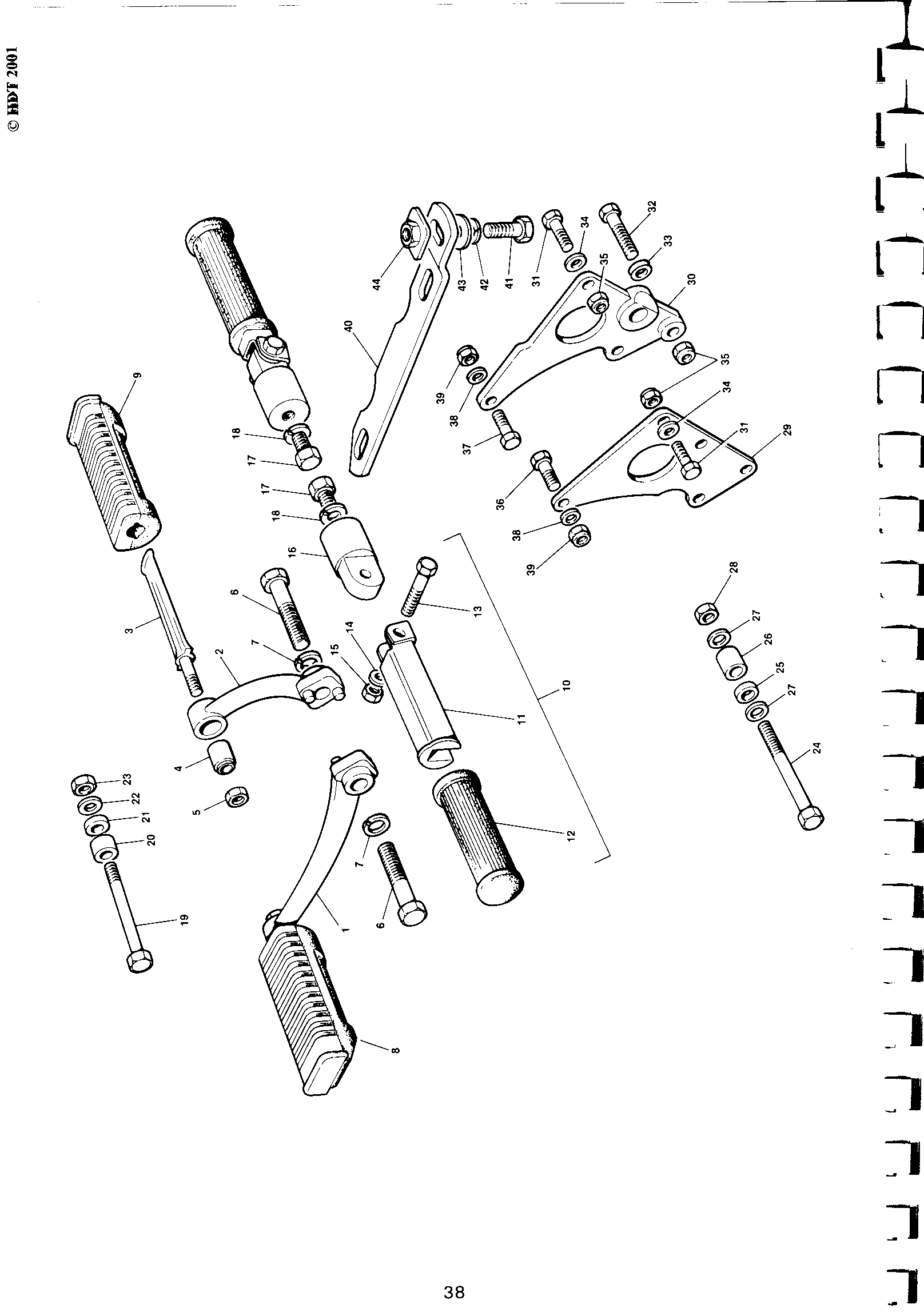

| Diagram | Fig. 15 — FOOTRESTS AND ENGINE MOUNTINGS · ref 7 |
| Subsystem | frame |
| Listed in parts books | 1983, 1985 |
| Also fits (as replacement) | 1974 · for 82-8243 |
Spring washer
A spring washer for footrest and engine mounting fasteners on the frame.
This is a spring washer used in the footrest and engine mounting area on the frame. It shows up in the catalog under FOOTRESTS AND ENGINE MOUNTINGS and MOTOR UNIT FITTINGS AND FOOTRESTS, so its job is holding fasteners in that part of the bike secure under vibration.
Read more
Spring washers like this one sit under a nut or bolt head and keep tension on the joint so things don't work loose over time - handy anywhere on a motorcycle frame that takes a beating from engine vibration. Given where it turns up in the parts books, this one is doing that job on a footrest or engine mounting fastener.
Our catalog record only shows two appearances for this part, both from the mid-80s. If you're matching this to a specific mounting point on your bike, give the shop a call and we'll confirm fitment before you order.
