Details

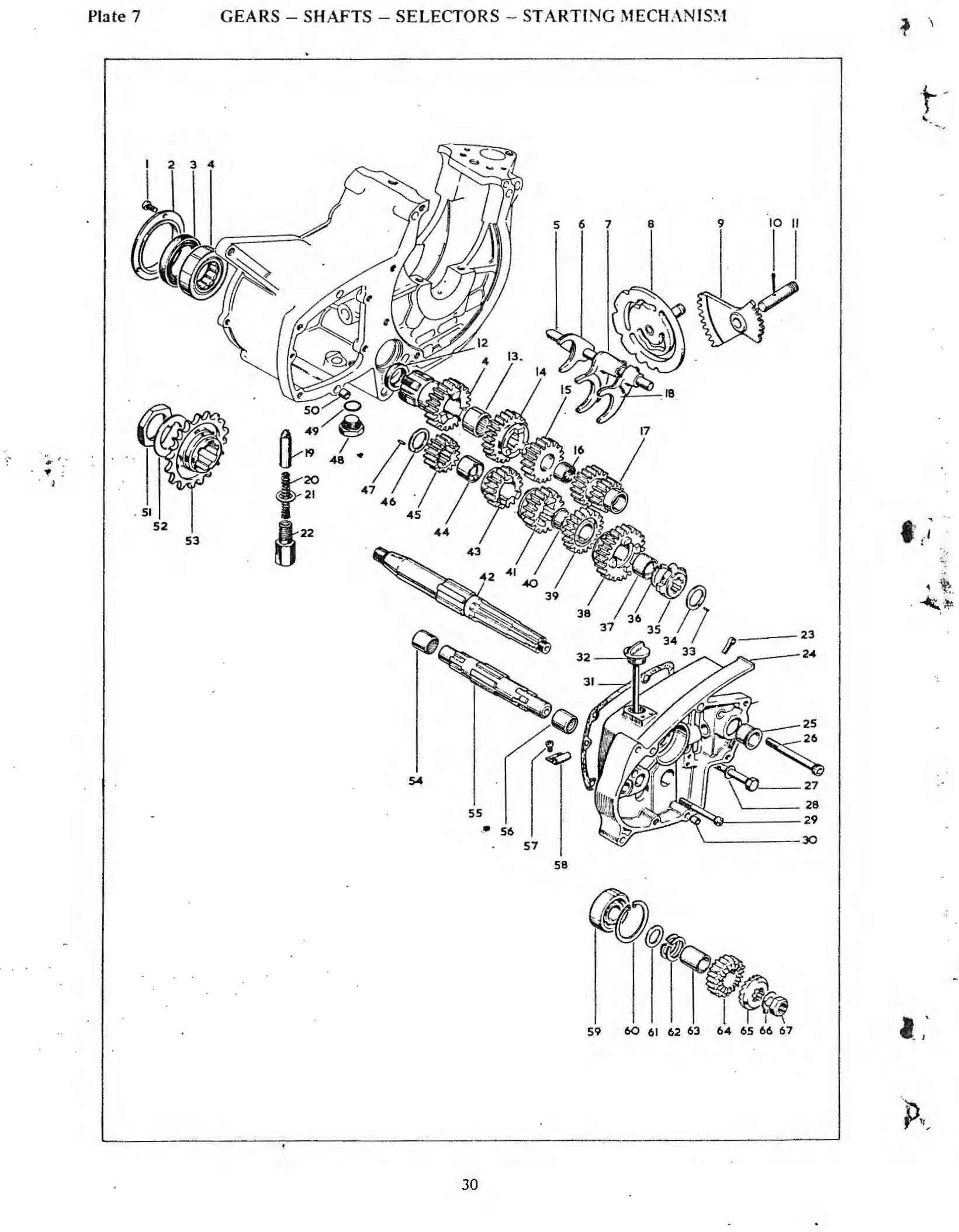

| Diagram | Fig. 10 — GEARS — SHAFTS — SELECTORS — STARTING MECHANISM · ref 10 |
| Subsystem | gearbox |
| Listed in parts books | Not catalogued by year yet |
Split pin
A 1/8 in. x 3/4 in. split pin used in the gearbox shafts and inner cover assembly.
PN · 1/8 IN. X 3/4 IN.
This is a split pin, sized 1/8 in. by 3/4 in., turning up in the gearbox shafts, bearings and inner cover parts book figure. It's the kind of small fastener that locks a nut or clevis pin in place once everything else is torqued down, keeping things from backing off under vibration.
Not listed anywhere
We've never carried this one. Tell us what you're after and we'll go looking — you'll get a price and photos before you commit to anything.
Sign in to request it
We need somewhere to send the price and the photographs.
Pin your bike to check this part fits.
Sorry if we got something wrong here. If you think this information isn't correct, .
