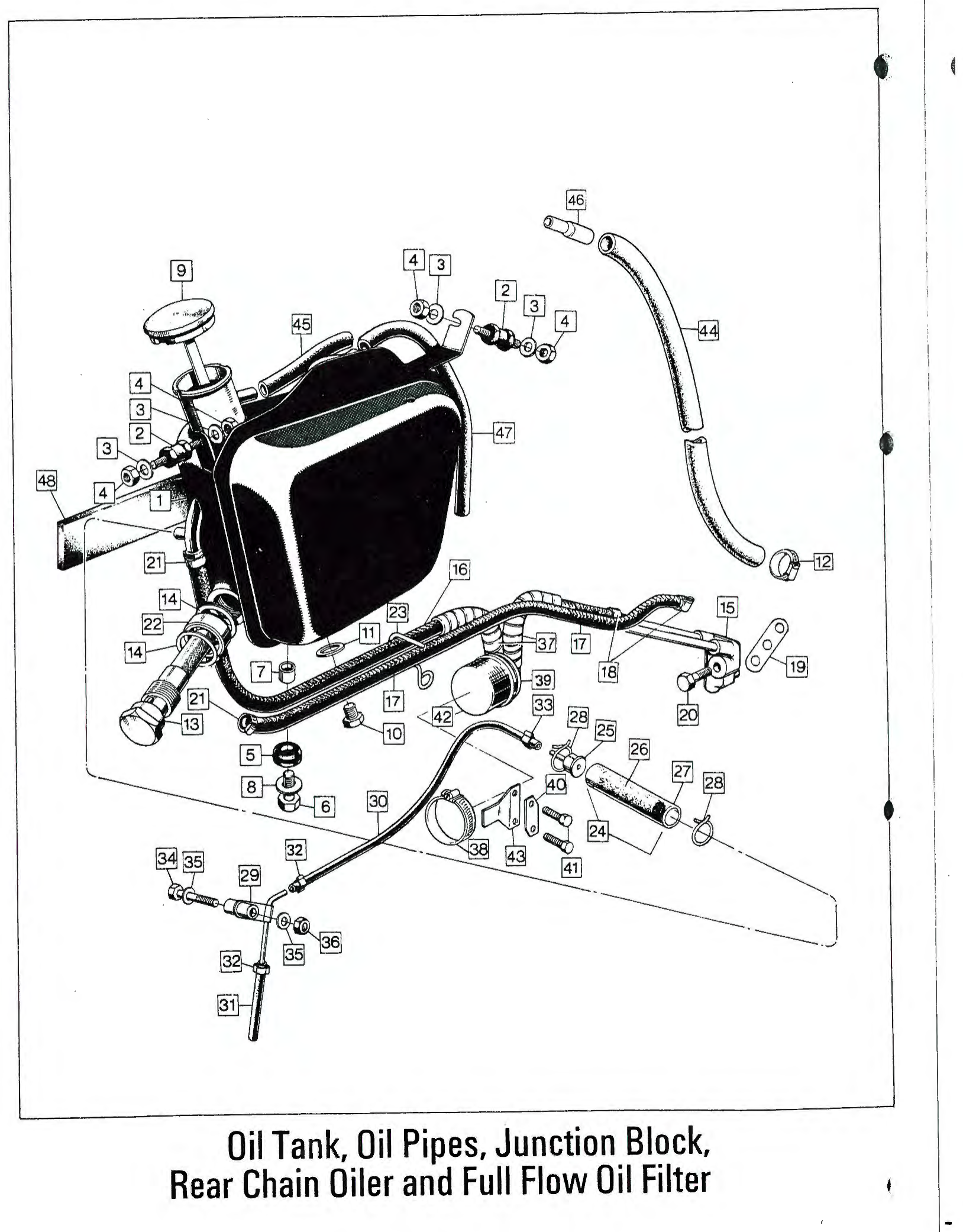

| Diagram | Fig. 16 — Oil Tank, Oil Pipes, Junction Block, Rear Chain Oiler and Full Flow Oil Filter · ref 1 |
| Subsystem | engine bottom |
| Listed in parts books | 1973 |
Norton Oil Tank
An oil tank from the lubrication system, catalog listing dated to 1973.
This is an oil tank, listed in the catalog under part number 063095. The figure it appears in covers the oil tank, oil pipes, junction block, rear chain oiler, and full flow oil filter together, which tells you it's part of a complete lubrication system rather than a standalone tank sitting off on its own.
Read more
The catalog record for this one is thin - it only shows up in a single listing, tied to 1973. We don't have more detail on this one beyond that, so if you're trying to match it up to a specific machine, bring in your old tank or your parts book reference and we'll compare before you order.
An oil tank on a dry-sump setup like this holds the reserve oil that gets pumped through the engine and back, so it's a component you want fitting right - wrong tank means plumbing that doesn't line up with your oil lines or the junction block feeding the chain oiler.
We've never carried this one. Tell us what you're after and we'll go looking — you'll get a price and photos before you commit to anything.
